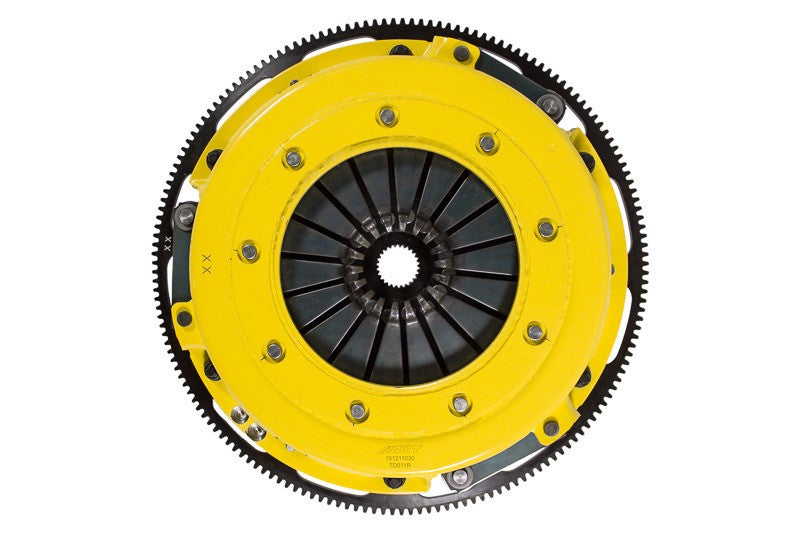

Advanced Clutch T1R-G01 TWIN DISC CLUTCH KIT CHEVY CAMARO CORVETTE
Regular price
$1,475.99
Sale price
$1,475.99
Regular price
Unit price
Advanced Clutch T1R-G01 TWIN DISC CLUTCH KIT CHEVY CAMARO CORVETTE



Attributes
- Input Shaft Size: 1-1/8 Inch X 26 Spline
- Pressure Plate Design: Diaphragm
- Disc Diameter: 10-1/2 Inch
- Number Of Friction Discs: 2 Disc
- Disc Friction Material: Ceramic
- Disc Friction Face Design: 6 Paddle
- Disc Hub Design: Solid
- Torque Holding Capacity: 1120 Feet/Pound
- Includes Throwout Bearing: No
- Includes Pilot Bearing: No
- Includes Alignment Tool: Yes
Product Description

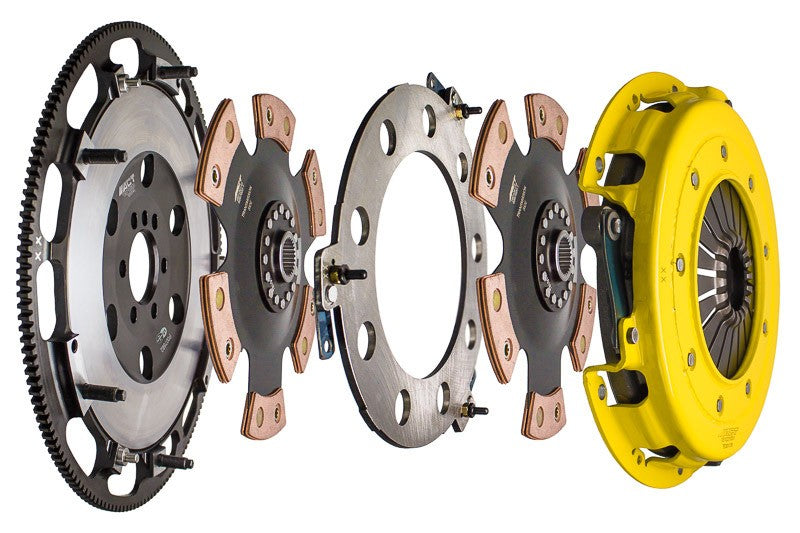

The Heavy-Duty race twin disc kit includes a Heavy-Duty pressure plate, two race discs, a floater and flywheel. The Heavy-Duty pressure plate offers a clamp load increase of 20 to 50 Percent with a stock to moderate pedal feel. ACT twin disc kits offer twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. With an ACT twin disc, there also is the ability to adjust for compensation of disc wear and provides equal disengagement for discs. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. Exclusive four-stage, heat treating process performed on all diaphragms. All ACT race twin disc kits meet SFI Specification 1.2 and are legal in all racing organizations that require SFI certification.
Features & Benefits
- Solid Disc Provides Faster Shifting And High Burst Strength. Three Different Disc Combinations Are Available For Various Power Levels
- Up To Three Different Pressure Plate Clamp Load Designs Offering Light, Moderate And Firm Pedal Efforts For High Torque Applications
- The ACT Proprietary Positive Lift Floater System Design Results In Quiet Operation With No Floater Rattle And Posts To Wear
- Ability To Adjust For Compensation Of Disc Wear And Provides Equal Disengagement For Discs
- Offers Twice The Number Of Disc Surfaces For Better Wear, Heat Capacity And Longer Life

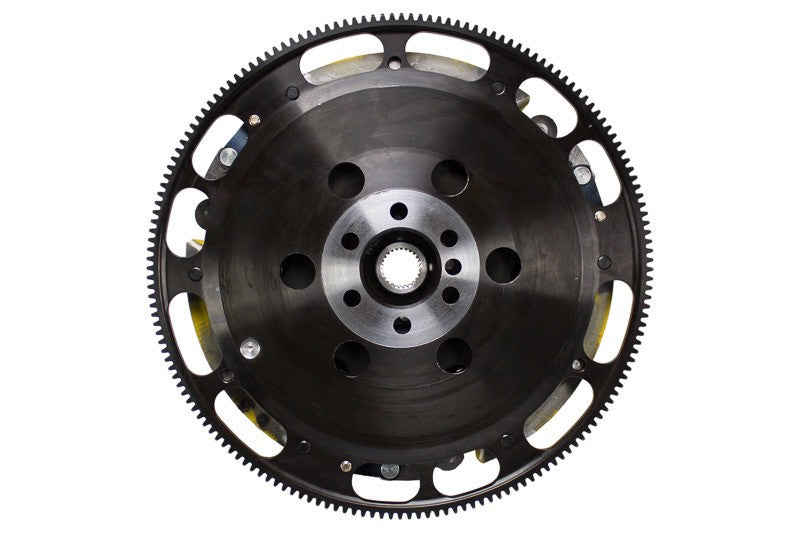

- All ACT Twin Disc Kit Includes CNC Machined And Dynamically Balanced Flywheel To Ensure Both Trouble Free Installation And Operation
- Clamp Load Increase Of 20 To 50 Percent Over Stock With A Stock To Moderate Pedal Feel
- Limited 1 Year Warranty
